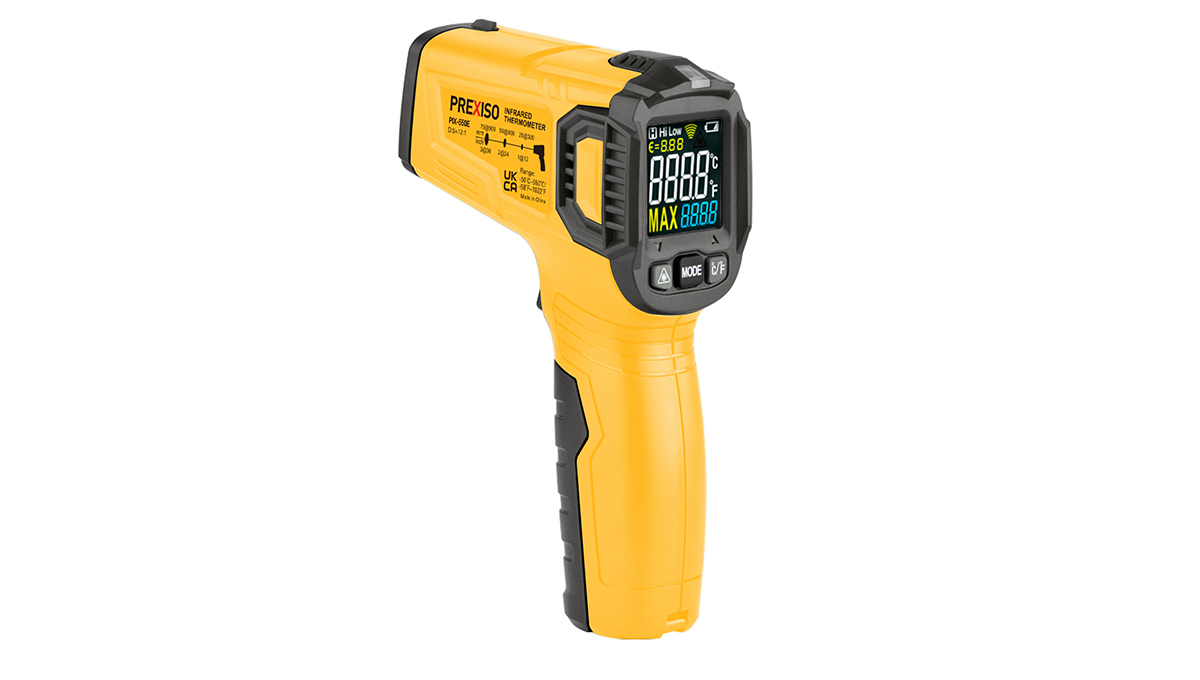

PIX-550E

INFRARED THERMOMETER

Back

 •Compact, rugged and easy to use. Just aim and push the button, read current surface temperatures in less than a second.

 •Safely measure surface temperatures of hot, hazardous or hard-to-reach objects without contact.

 •Measuring range pinpointing with target laser -40°C to 500°C.

 •DS-Ratio: 12:1


Accuracy ±2% or ±2℃(≥0℃)±3℃(<0℃)
Temperature range -50℃ ~ 550℃(-58℉ ~ 1022℉)
Weight 113 g(0.25 lb)
Laser type Laser class 2, <1mW
Power supply 2 x AAA 1.5V battery
Dimensions (W x H x D) 45 x 152 x 93 mm(1.77 x 5.98 x 3.66 in)
Response time < 0.5 second
Storage temperature -20℃~60℃(-4℉~140℉)
Operating temperature Operating temperature 0℃~40℃(32℉~104℉)
Emissivity 0.10~1.00 adjustable
distance spot ratio 12 : 1
Accuracy ±2% or ±2℃(≥0℃)±3℃(<0℃)
Temperature range -50℃ ~ 550℃(-58℉ ~ 1022℉)
