PDMX-206A

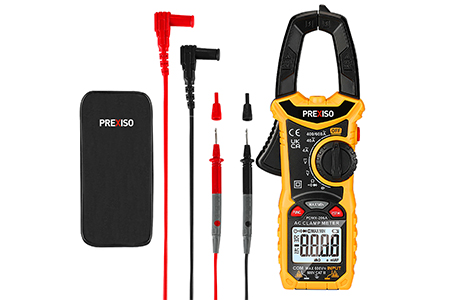

AC CLAMP METER

Back

• Measures AC current to 600 amp, AC and DC voltage to 600V, and resistance to  40 MΩ.

• Slim, ergonomic design

• Large, easy to read back light display

• CAT.III 600V safety rating

• With a new generation of true RMS double impedance ,  makes your work easier, more efficient and safer.


DC voltage accuracy) ± (0.5% reading + 5digits)
AC voltage accuracy) 40~500Hz:± (1.0% reading+ 5 digits) other frequency: ± (2.0% reading+ 10 digits)
AC current 4A/40A/400A/600A
AC current accuracy 40~500Hz:± (2.5% reading+ 5 digits) other frequency: ± (3.0% reading+ 10 digits)
Resistance(accuracy) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ: ± (1.0% reading + 5digits)
Capacity(accuracy) 4nF/40nF/400nF/4μF/40μF/400μF/4mF: ± (4.0% reading + 5)
Battery 2*AAA 1.5V
Includes carrying bag, test probes with wires, 2xAAA batteries, user manual
Package Colour box
